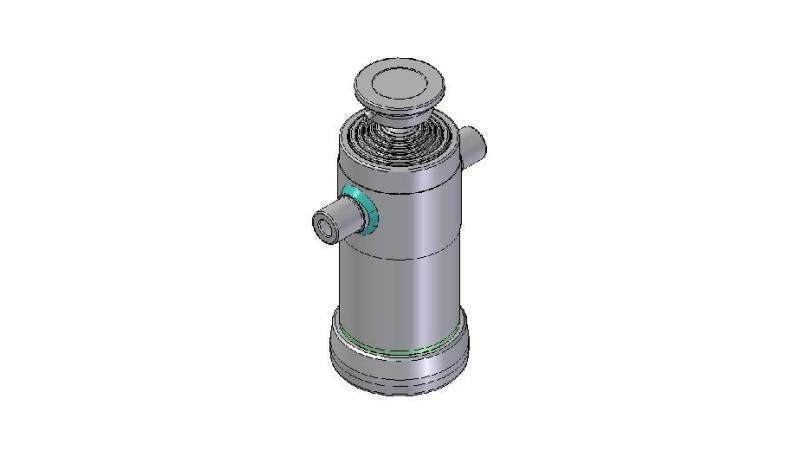

Underbody Cylinder - 6-Stage 1480mm Stroke Underbody Hoist Cylinder - Model 6008S
Couldn't load pickup availability
The 6008S Underbody Hoist Cylinder is a robust 6-stage hoist, ideal for heavy-duty tipping applications in trailers and utes. With an extended stroke length of 1480mm and a closed height of 440mm (including a 20mm pull out), this hoist is engineered for high lifting capacity in demanding conditions. The 152mm diameter and an ideal pivot length of 1785mm provide exceptional stability and durability. At 46kg, it’s built to handle substantial loads while remaining efficient and reliable.
This hoist has an oil volume of 8.9 litres and a tipping capacity of 5 tonnes nominal, with a maximum capacity of 8.5 tonnes at 170 Bar. A hose burst valve is available upon request to enhance safety during operation.
Key Specifications:
- Model: 6008S
- Stages: 6-stage extension
- Stroke Length: 1480mm
- Closed Height: 440mm (includes 20mm pull out)
- Ideal Pivot Length: 1785mm
- Diameter: 152mm
- Weight: 46kg
- Oil Volume: 8.9 litres
- Tipping Capacity: Nominal 5 tonnes / Maximum 8.5 tonnes at 170 Bar
- Optional Safety Feature: Hose burst valve available upon request
The 6008S Underbody Hoist Cylinder offers a powerful solution for heavy-duty tipping needs, combining durability with exceptional performance. Contact our team to discuss compatibility, installation requirements, and optional safety features tailored to your application.
