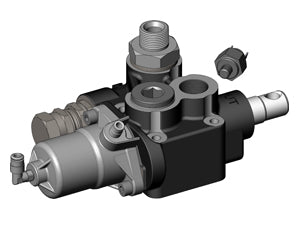

OMFB Tipper Valve - MODULAR 150 CE 3/4" Control Valve - 150 L/min, 160 Bar (2320 PSI)
Engineered for precision and durability, the MODULAR 150 CE is a compact, high-performance pneumatic tipping valve designed for medium to heavy-duty tipper applications. Operated via N-FORCE pneumatic actuation, this valve features direct control with built-in safety and performance enhancements that meet CE standards.
Its nodular cast-iron construction ensures high pressure resistance (up to 400 bar), while integrated check and relief valves offer reliable circuit control. The modular design includes end-of-stroke mechanical feedback and provisions for a pressure signal switch, providing robust functionality for demanding hydraulic systems.
Key Features:
-
Proportional pneumatic tipping valve for medium–heavy duty tipper trucks
-
Direct-operated with N-FORCE pneumatic signal
-
Built-in check valve and direct-type adjustable relief valve
-
High-strength nodular cast-iron body rated up to 400 bar
-
Compact design with front port layout for tight space installations
-
End-of-stroke mechanical stop for precise control
-
Galvanised body and nickel-plated spool for corrosion resistance
-
Suitable for both chassis or tank mounting (DSP kit compatible)
- Optional pressure indicator switch for system monitoring
Applications:
Perfect for hydraulic tipping systems in transport, civil, and construction industries where proportional control, durability, and compact installation are required.
This tipping valve is an excellent choice for enhancing hydraulic performance in light-duty tipper trucks. Contact our experts for more details on compatibility and installation to ensure this valve meets your system’s requirements.
