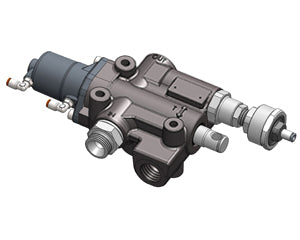

OMFB Tipper Valve - MODUL-TRUCK 250 CE 1" Dual Pressure Air Operated Control Valve - 250 L/min
Heavy-duty dual-pressure hydraulic tipping valve designed for medium to heavy tippers. CE-certified with open-centre operation and built for 400 bar systems. Compact front-port layout and multiple return ports make it ideal for trailer-mounted secondary systems like side tippers, water carts, and walking floors.
Key Features:
-
1” BSP ports
-
Dual-pressure control via lever
-
Multiple tank return ports for trailer-mounted valve supply
-
Built-in check and adjustable relief valve
-
Mechanical end-of-stroke
-
Galvanized body & nickel-plated spool
-
Ready for optional pressure switch
Application Benefit:
This valve allows operators to easily switch between standard and high-pressure modes from inside the vehicle. For example, use standard pressure for end tipper trailers and switch to high pressure when operating side tipper trailers that require more force. The same applies if you're switching between an end tipper and a walking floor trailer. It’s a simple and reliable solution for managing multi-pressure setups from a single truck.
Contact our experts for more details on compatibility and installation to ensure this valve meets your system’s requirements.
