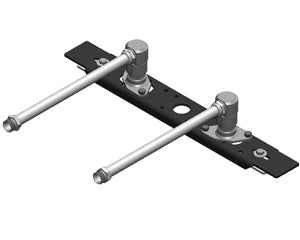

Swivel Joint Bracket Kit – Model 12201510039 (G1")
Couldn't load pickup availability
Built for durability and easy installation, the 12201510039 Swivel Joint Bracket Kit is designed to support and guide hydraulic hoses behind the cabin of the vehicle. This heavy-duty kit simplifies hose movement while ensuring a clean and secure fit – no drilling required.
Key Features:
-
Direct Chassis Mount – Installs easily onto the upper frame rail without drilling
-
Dual G1" Swivel Joints – Facilitates smooth hose movement and reduces wear
-
Multiple Mounting Positions – Side swivel joints can be installed in 3 positions, with an optional centre mount
-
High-Strength Construction – Powder-coated RAL 7021 bracket with cold zinc-treated accessories
-
Complete Kit – Includes steel extension pipes, mounting plates, brackets, and bolts
-
Spacer Plate Included – Allows for secure fitment on chassis with obstructions
Ideal for:
Use on tipper trucks, car carrier trailers, and semitrailer applications where hydraulic hose movement needs to be supported and protected.

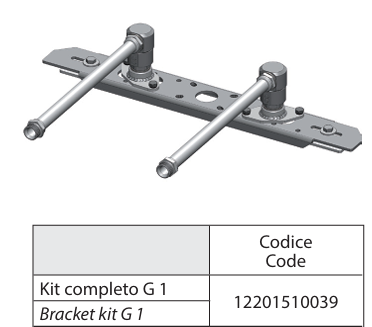

Model: 12201510039
Thread Size: G1"
Also available in: G3/4" (Model 12201510011)
Optional Extras:
-
Additional centre swivel joint (P/N: 12201600101 – G1")
-
Bare support bracket available separately (P/N: 12201530035)
In stock now – ready to ship nationwide or collect from your local branch.
