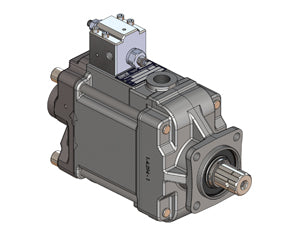

OMFB PPV Series ISO ISO 4-Bolt Variable Piston Pump - 110cc / 400 Bar - Right Hand Rotation (Clockwise)
The PPV Series ISO Variable Displacement Piston Pumps are engineered for efficient, high-performance hydraulic systems. Designed to operate in open circuits, these OMFB-made pumps deliver adjustable flow through a swash plate mechanism, making them ideal for mobile equipment and commercial vehicles with space constraints.
Available in 60cc, 90cc, 110cc, and 130cc sizes, the PPV Series is compact, responsive, and can be mounted directly to PTOs, making it perfect for truck-mounted applications such as tippers, water carts, waste trucks, and blowers.
Key Features:
-
Available sizes: 60cc, 90cc, 110cc, 130cc
-
Variable displacement via swash plate – precise flow control
-
Compact footprint – ideal for direct PTO mounting
-
Fast reaction time – responds quickly to system load changes
-
Open-circuit operation
-
Optional adjustable displacement limiter available
-
Max working pressure: 375–400 bar depending on model
-
Min. continuous speed: 500 RPM
-
Max. peak speed: 3000 RPM
-
Designed for clockwise or counterclockwise rotation (must specify on order)
-
Optional load sensing control and flushing valve available
Optional Configurations:
-
Load Sensing Control (LS): Maintains optimal pressure differential (∆p 15–50 bar)
-
Flushing Valve: Keeps pump cool in standby by directing a small flow to tank
-
Constant Flow Control: Maintains fixed flow rate across speed/load variations
Need help choosing the right PPV pump? Our technical team can help you match your system’s pressure, flow, and speed requirements with the correct PPV configuration. We’re here to assist!
