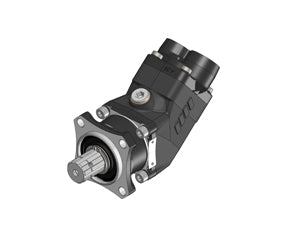

The OMFB HDS Series ISO 4-Bolt Piston Pump is designed for compact, high-performance hydraulic applications where high pressure and speed capability are required. Featuring a robust bent axis piston pump design, it delivers smooth and reliable hydraulic flow, making it ideal for mobile and industrial systems with limited installation space.
Engineered for demanding operating conditions, the HDS Series pump supports very high continuous and maximum speeds while maintaining dependable performance. Its ISO 4-bolt mounting configuration allows for secure and straightforward installation, and left-hand (anticlockwise) rotation ensures compatibility with a wide range of drive systems.
Family Features:
-
HDS Series bent axis piston pump design
-
ISO 4-bolt mounting for compact installations
-
High-pressure capability for demanding hydraulic applications
-
Compact 34cc displacement for efficient system integration
Pump Specifications:
-
Displacement: 34cc
-
Maximum Pressure: 350 Bar
-
Peak Pressure: 400 Bar
-
Maximum Continuous Speed: 2300 RPM
-
Maximum Speed (No Load): 3000 RPM
-
Rotation: Left hand (Anticlockwise, CCW)
-
Mounting: ISO 4-Bolt
This high-performance OMFB piston pump is ideal for applications requiring compact size, high speed capability, and reliable pressure performance. If you need help confirming compatibility or selecting the right pump for your system, our team is here to help.
